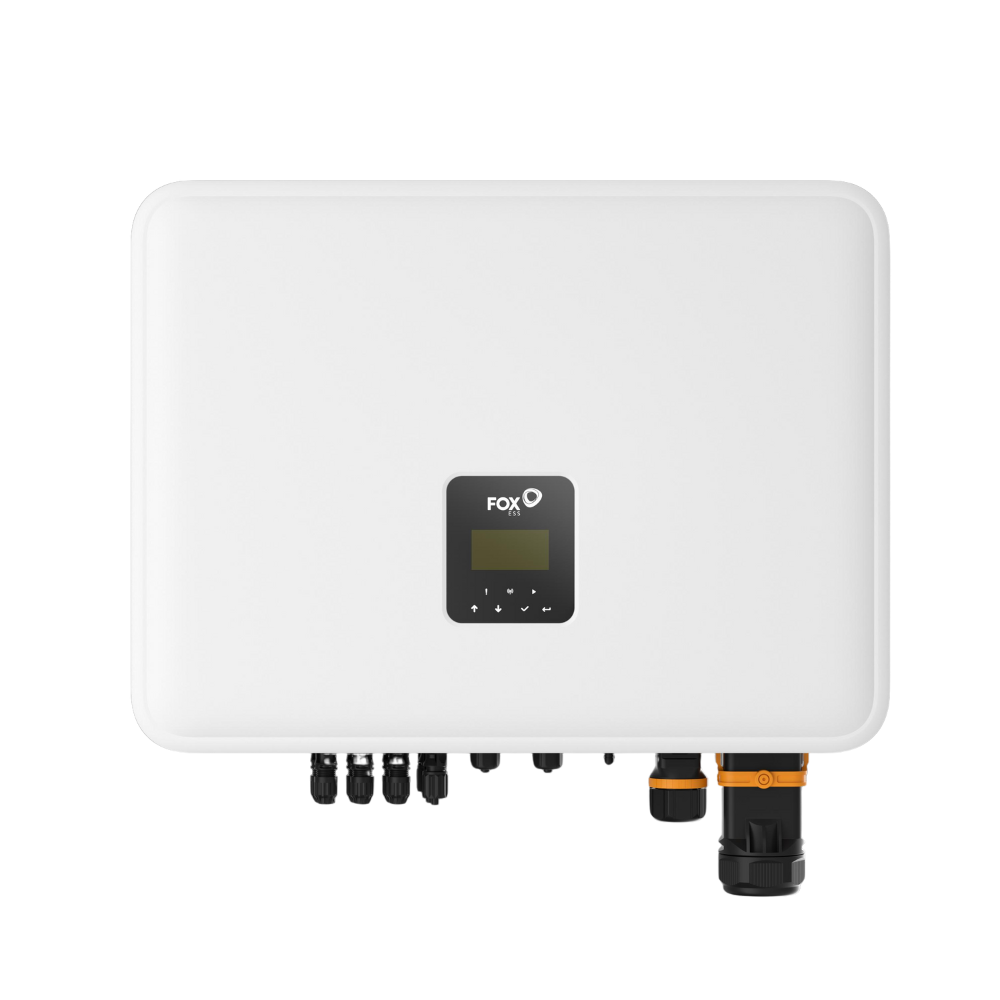

Key features of the FoxESS P3-5.0-SH 5 kW hybrid inverter:
PV Input
- Max. PV Power [Wp]: 11000
- Nominal Input Voltage [V]: 620
- Start-up Voltage [V]: 140
- Number of Independent MPPTs: 2
Batteries
- Battery Type: LFP
- Battery Voltage Range [V]: 100 ~ 800
- Max. Charge/Discharge Current [A]: 50
AC Output
- Nominal Output Power [W]: 5000
- Nominal AC Current [A] (per phase): 7.6
- Max. AC Current [A] (per phase): 8.3
AC Input
- Max. AC Input Power [VA]: 6000
- Nominal AC Grid Voltage [V]: 400/230Vac; 380/220Vac, 3L/N/PE
- Max. AC Current [A] (per phase): 9.1
EPS Input
- Max. Apparent Power [VA]: 5000
- Peak Apparent Power [VA] (60s): 6000
- Nominal EPS Grid Voltage [V]: 400/230Vac; 380/220Vac, 3L/N/PE
- Max. EPS Current [A] (per phase): 7.2
Efficiency
- MPPT Efficiency [%]: 99.90
- Max. Efficiency [%]: 97.30
Dimensions and Weight
- Dimensions (W*H*D) [mm]: 600*450*226
- Packing Dimensions (W*H*D) [mm]: 665*545*390
- Net Weight [kg]: 34
- Gross Weight [kg]: 40
