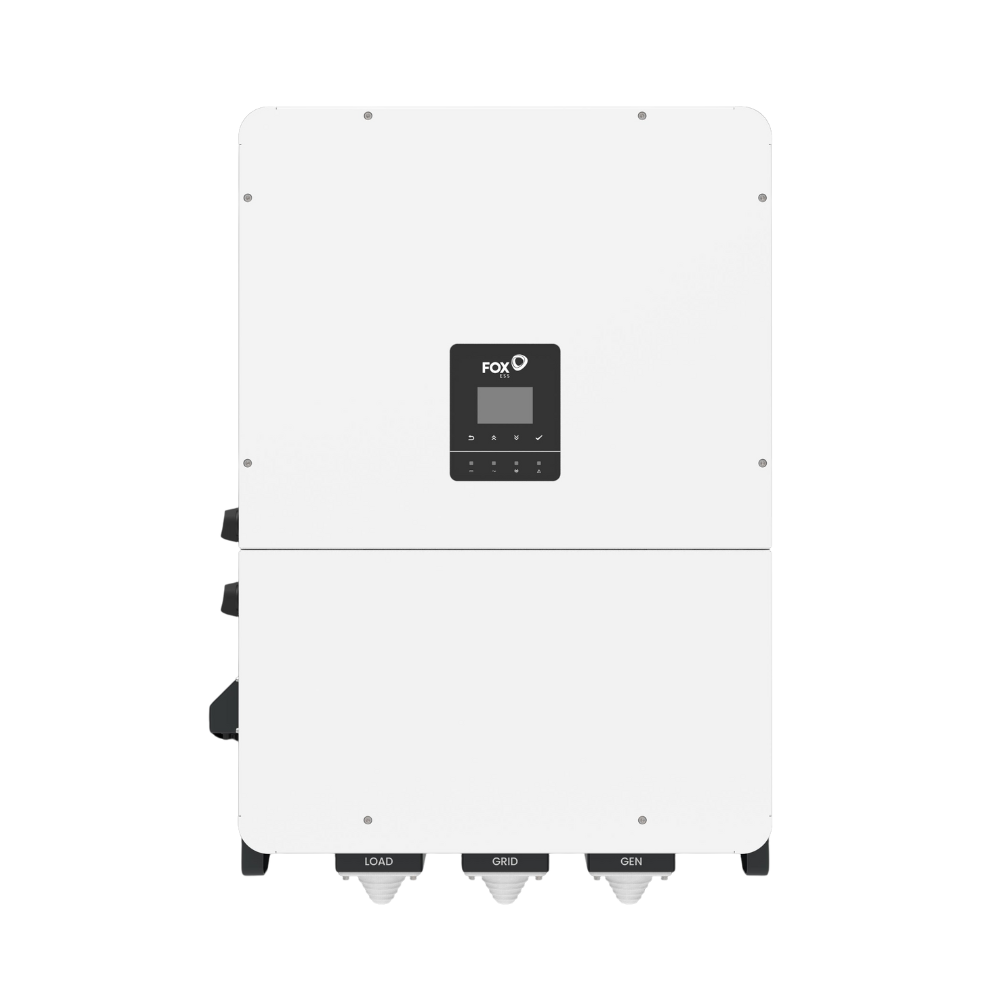

Technical specifications of the FoxESS P3-75-Plus 75 kW hybrid inverter
- Rated output power [kW]: 75
- Max. PV power [kW]: 150
- Number of MPPTs: 8
- MPPT operating range [V]: 180–850
- Start-up voltage [V]: 180
- Battery voltage range [V]: 180–950
- Battery charge/discharge current [A]: 240 (80+80+80)
- Maximum inverter efficiency: 98.5%
- Backup mode switchover time [ms]: <10
- Noise level: <70 dB
